SX2KL-33F200E-32.768KHz,2520mm,FCD-Tech數字設備晶振,CMOS振蕩器,FCD-Tech進口晶振,荷蘭進口晶振,時鐘晶體振蕩器,有源貼片晶振,2520mm超小型晶振,32.768KHZ振蕩器,CMOS輸出晶振,SMD振蕩器,尺寸2.5x2.0mm,頻率32.768KHZ,電壓3.3V,輸出CMOS,高抗沖擊晶振,高品質晶振,低電壓晶振,低功耗晶振,便攜式設備晶振,智能穿戴晶振,測試設備晶振,無線局域網晶振.
SX2KL-33F200E-32.768KHz,2520mm,FCD-Tech數字設備晶振,CMOS振蕩器特點:
超小型封裝有源晶振
高抗沖擊/振動性（半導體工藝）
擴展可用的溫度范圍，非常快速地啟動
定制頻率0.5Hz至500MHz
應用：便攜式電子產品.
SX2KL-33F200E-32.768KHz,2520mm,FCD-Tech數字設備晶振,CMOS振蕩器 參數表
| Item |
Speci?cation 32.768 kHz (please consult factory for custom make frequency 0.5 Hz - 500 MHz) |
|||||||
| Frequency Range | 32.768 kHz (please consult factory for custom make frequency 0.5 Hz - 500 MHz) | |||||||
| Output Logic | CMOS | |||||||
| Overall Frequency Stability * | ± 200 ppm typ . ~ ± 500 ppm max | |||||||
| Operating Temperature Range | -20 ~ +70°C | |||||||
| Supply Voltage Vdd | +3.3V ±5% | |||||||
| Supply CurrentIdd | 15 µA max | |||||||
| Output Level | VOH ≥ 0.9 VddVOL ≤ 0.1 Vdd | |||||||
| Output Load | 15 pF | |||||||
| Symmetry | 45 / 55 % | |||||||
 Rise Time / Fall Time
|
20 ns max | |||||||
| Tri-state function |
pin #1 = high or open pin #1 = low |
pin #3 ==>oscillation pin #3 ==>high impedance |
||||||
| Start-up Time | 1 ms max. | |||||||
| Shock resistance | 20000GS | |||||||
|
Packing Unit |
||||||||
 Soldering Condition
|
||||||||

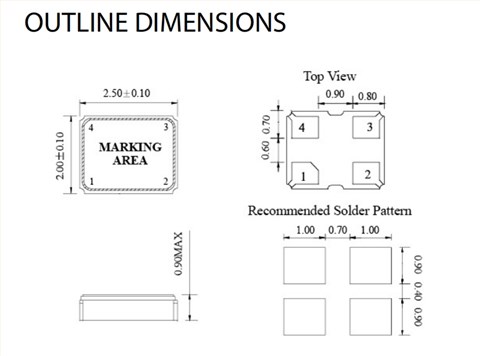

SX2KL-33F200E-32.768KHz,2520mm,FCD-Tech數字設備晶振,CMOS振蕩器尺寸圖
